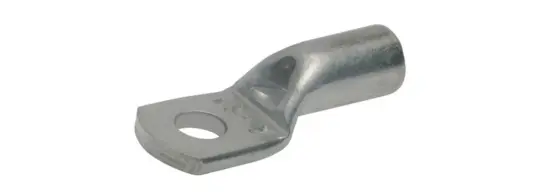

Tubular cable lugs, Cu, standard type
- Cable lug for fine-stranded round conductors, e.g. to DIN EN 60228 Cl.
- Simple processing thanks to inspection hole for monitoring full conductor insertion
Features
- Annealed material optimises material and crimping properties
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Reliable assignment owed to item designation on the cable lug
Material
- Copper (EN13600)
Surface
- Tin-plated to protect against corrosion
Article information
PART NO. | CROSS- SECTION MM² | CONN. BOLTS DIA. | DIMENSIONS MM | A | B | D2 | D4 | C1 | C2 | L | WEIGHT/100 PCS. ~KG | PU/PCS. |
91R3 | 0,75 | M3 | 1,3 | 6 | 6,0 | 3,2 | 2,8 | 3,25 | 4,0 | 12 | 0,060 | 100 |
91R4 | 0,75 | M4 | 1,3 | 6 | 6,5 | 4,3 | 2,8 | 4,00 | 5,0 | 13 | 0,060 | 100 |
91R5 | 0,75 | M5 | 1,3 | 6 | 7,5 | 5,3 | 2,8 | 4,75 | 5,5 | 14 | 0,060 | 100 |
92R3 | 1,5 | M3 | 1,8 | 6 | 6,5 | 3,2 | 3,3 | 3,25 | 4,0 | 12 | 0,080 | 100 |
92R4 | 1,5 | M4 | 1,8 | 6 | 6,5 | 4,3 | 3,3 | 4,00 | 5,0 | 13 | 0,080 | 100 |
92R5 | 1,5 | M5 | 1,8 | 6 | 7,5 | 5,3 | 3,3 | 4,75 | 5,5 | 14 | 0,080 | 100 |
92R6 | 1,5 | M6 | 1,8 | 6 | 9,0 | 6,4 | 3,3 | 6,50 | 6,5 | 16 | 0,090 | 100 |
93R3 | 2,5 | M3 | 2,3 | 6 | 7,5 | 3,2 | 4,2 | 3,25 | 4,0 | 12 | 0,120 | 100 |
93R4 | 2,5 | M4 | 2,3 | 6 | 7,5 | 4,3 | 4,2 | 4,00 | 5,0 | 13 | 0,120 | 100 |
93R5 | 2,5 | M5 | 2,3 | 6 | 8,5 | 5,3 | 4,2 | 4,75 | 5,5 | 14 | 0,130 | 100 |
93R6 | 2,5 | M6 | 2,3 | 6 | 9,5 | 6,5 | 4,2 | 6,50 | 6,5 | 16 | 0,150 | 100 |
93R8 | 2,5 | M8 | 2,3 | 6 | 13,0 | 8,4 | 4,2 | 7,75 | 9,5 | 20 | 0,180 | 100 |
94R4 | 4 | M4 | 3,0 | 8 | 8,5 | 4,3 | 5,0 | 4,75 | 5,5 | 17 | 0,210 | 100 |
94R5 | 4 | M5 | 3,0 | 8 | 9,0 | 5,3 | 5,0 | 4,75 | 6,0 | 17 | 0,213 | 100 |
94R6 | 4 | M6 | 3,0 | 8 | 10,0 | 6,4 | 5,0 | 6,50 | 6,5 | 19 | 0,220 | 100 |
94R8 | 4 | M8 | 3,0 | 8 | 13,0 | 8,4 | 5,0 | 8,50 | 9,5 | 22 | 0,280 | 100 |
95R4 | 8 | M4 | 4,0 | 9 | 9,5 | 4,3 | 6,0 | 5,00 | 5,5 | 18 | 0,290 | 100 |
95R5 | 8 | M5 | 4,0 | 9 | 9,5 | 5,3 | 6,0 | 6,00 | 6,0 | 19 | 0,300 | 100 |
95R6 | 8 | M6 | 4,0 | 9 | 10,0 | 6,4 | 6,0 | 7,00 | 6,5 | 19 | 0,300 | 100 |
95R8 | 8 | M8 | 4,0 | 9 | 14,0 | 8,5 | 6,0 | 8,50 | 9,5 | 22 | 0,320 | 100 |
